Zirconia Mortars & Pestles (ZrO2)
Zirconia Mortars & Pestles
Zirconia's high density, low porosity, inertness, toughness, and super hardness make it the perfect material for making mortars and pestles.
Being approximately 10 on the Mohs hardness scale, Zirconia mortar and pestles can grind materials too hard for agate, alumina, and porcelain. Our high wear-resistant mortar and pestle effectively eliminates product contamination and is chemically inert to all acids.
These unique features make zirconia the most versatile and best-suited mortar and pestle material for sensitive biological and other critical applications requiring ultra-low contamination and acid resistance.
Zirconia Mortars & Pestles Information
| Composition (wt%) | 94.9% ZrO2 + 5.1%Y2O3 | ||||||
| Bulk Density (kg/L) | 3.5 | ||||||
| Specific Density (g/cm3) | > 6.0 | ||||||
| Hardness(HV) (GPa) | > 10 | ||||||
| Modulus of Elasticity (GPa) | 200 | ||||||
| Thermal Conductivity (W/m.K) | 3 | ||||||
| Thermal Expansion Coefficient (10x10-6/k (20 to 400)) | 9.6 | ||||||
| Crushing Load ( KN) | > 15 | ||||||
Zirconia Mortars & Pestles Specifications
 |
 |
||
| Name | Zirconia Mortar/ Pestle | Name | Zirconia Mortar/ Pestle |

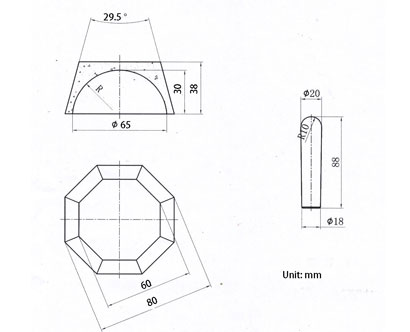

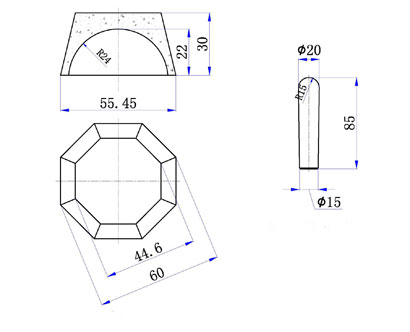

| Model | YSZ-M060 | Model | YSZ-M080 |
| Outer Diameter (OD) | 60mm | Outer Diameter (OD) | 80mm |
| Inner Diameter (ID) | 48mm | Inner Diameter (ID) | 65mm |
| Depth | 22mm | Depth | 30mm |
 |
 |
||
| Name | Zirconia Mortar/ Pestle | Name | Zirconia Mortar/ Pestle |

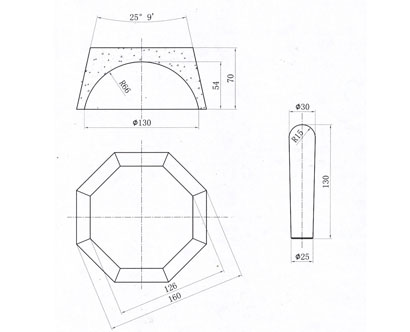

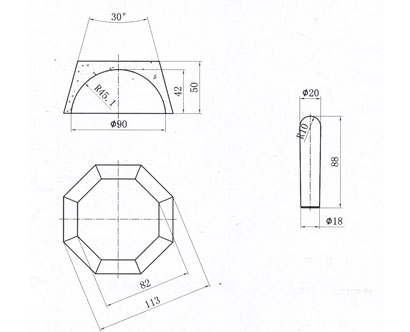

| Model | YSZ-M113 | Model | YSZ-M160 |
| Outer Diameter(OD) | 113mm | Outer Diameter(OD) | 160mm |
| Inner Diameter(ID) | 90mm | Inner Diameter(ID) | 130mm |
| Depth | 42mm | Depth | 54mm |
Zirconia Mortars & Pestles Applications
1. Hard Materials
Zirconia's superior hardness allows it to grind tough ceramics such as aluminum oxide and silicon oxide.
2. Low Contamination Materials
When absolutely no contamination is tolerable, such as in ultra-pure organic, nanomaterial, and forensic applications, Zirconia is your best choice
3. HF Applications
Zirconia's inertness to HF and other acids make it superior to agate and other materials.
4. High-Temperature Applications
Zirconia's physical and thermal shock resistance lends it well to high-temperature applications.
Zirconia's superior hardness allows it to grind tough ceramics such as aluminum oxide and silicon oxide.
2. Low Contamination Materials
When absolutely no contamination is tolerable, such as in ultra-pure organic, nanomaterial, and forensic applications, Zirconia is your best choice
3. HF Applications
Zirconia's inertness to HF and other acids make it superior to agate and other materials.
4. High-Temperature Applications
Zirconia's physical and thermal shock resistance lends it well to high-temperature applications.
