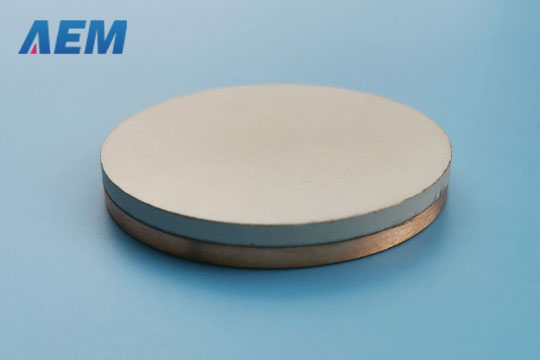

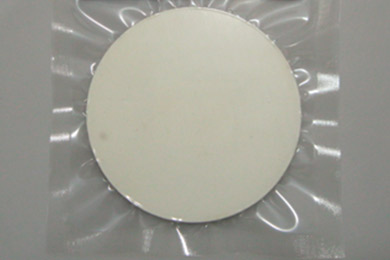

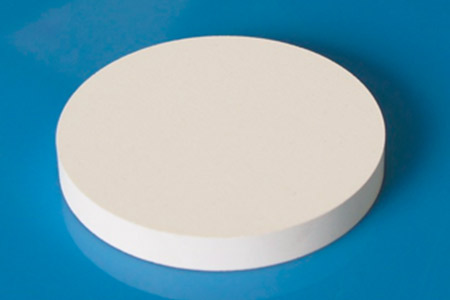

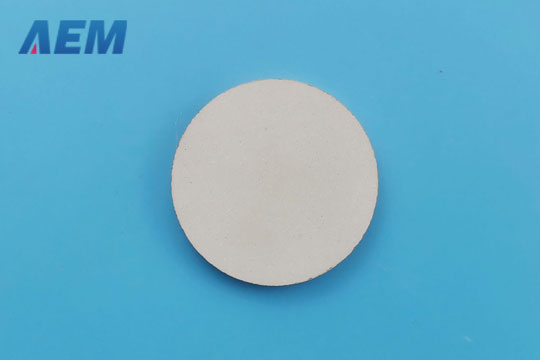

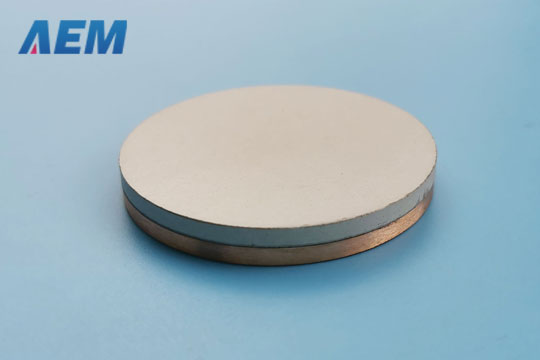

Barium Zirconate Sputtering Targets (BaZrO3)
| Material Type | Barium Zirconate |
| Symbol | BaZrO3 |
| Color/Appearance | Off-white, Solid |
| Melting Point (°C) | 2,500 |
| Theoretical Density (g/cc) | 5.52 |
| Z Ratio | N/A |
| Sputter | RF, DC |
|
Max Power Density* (Watts/Square Inch) |
|
| Type of Bond | Indium, Elastomer |
| Comments |
Barium Zirconate Sputtering Targets
Barium Zirconate Sputtering Targets
Purity: 99.9%;
Circular: Diameter <= 14 inch, Thickness >= 1 mm;
Block: Length <= 32 inch, Width <= 12 inch, Thickness >= 1 mm.
More Information on Barium Zirconate Sputtering Targets
Applications• Ferroelectric• Gate Dielectric • For CMOS |
Features• High purity• Custom sizes available |
Manufacturing Process• Manufacturing - Cold pressed - Sintered, Elastomer bonded to backing plate
• Cleaning and final packaging, Cleaned for use in vacuum, |
Options
• 99.9% minimum purity
• Smaller sizes also available for R&D applications
• Sputtering target bonding service
|
Related Products of Barium Zirconate Sputtering Targets
|
Pure Metal Sputtering Targets Barium Sputtering Target |
|
Ceramic Sputtering Targets Barium Carbonate Sputtering Target |
|
Evaporation Materials Barium Evaporation Pellet |
Crucibles N/A |
Metal Powders N/A |
Click to download datasheet about Barium Zirconate Sputtering Targets (BaZrO3)
Unable to find the required data sheet? Click here to send an email and get it.
Click here to get answers to Frequently Asked Questions (FAQ).
