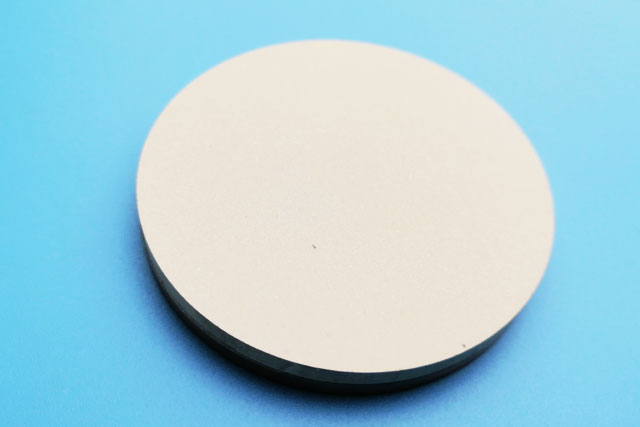

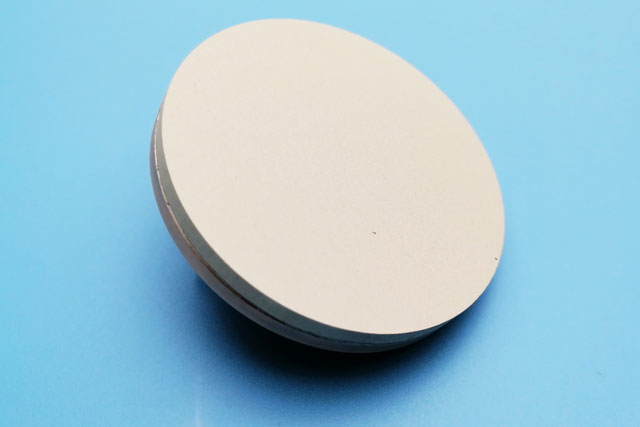

Calcium Titanate Sputtering Targets (CaTiO3)
| Material Type | Calcium Titanate |
| Symbol | CaTiO3 |
| Color/Appearance | White/off-white, Solid |
| Melting Point (°C) | 1,975 |
| Relative Density (g/cc) | 3.98 @ 25°C |
| Z Ratio | N/A |
| Sputter | RF, DC |
|
Max Power Density* (Watts/Square Inch) |
|
| Type of Bond | Indium, Elastomer |
| Comments | Disproportionates except in sputtering. |
Calcium Titanate Sputtering Targets
Calcium Titanate Sputtering Targets
Purity: 99.99%;
Circular: Diameter <= 14 inch, Thickness >= 1 mm;
Block: Length <= 32 inch, Width <= 12 inch, Thickness >= 1 mm.
More Information on Calcium Titanate Sputtering Targets
Applications• Ferroelectric• Gate Dielectric • For CMOS
• Non-volatile memory
• Thin film capacitor
|
Features• High purity• Custom sizes available |
Manufacturing Process• Manufacturing - Cold pressed - Sintered, Elastomer bonded to backing plate
• Cleaning and final packaging, Cleaned for use in vacuum, |
Options
• 99.99% minimum purity
• Smaller sizes also available for R&D applications
• Sputtering target bonding service
|
Related Products of Calcium Titanate Sputtering Targets
|
N/A
|
Ceramic Sputtering Targets |
|
|
Evaporation Materials |
Crucibles N/A |
Metal Powders N/A |
