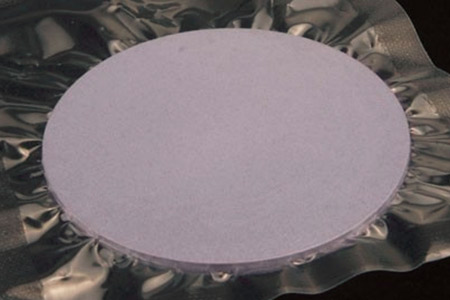

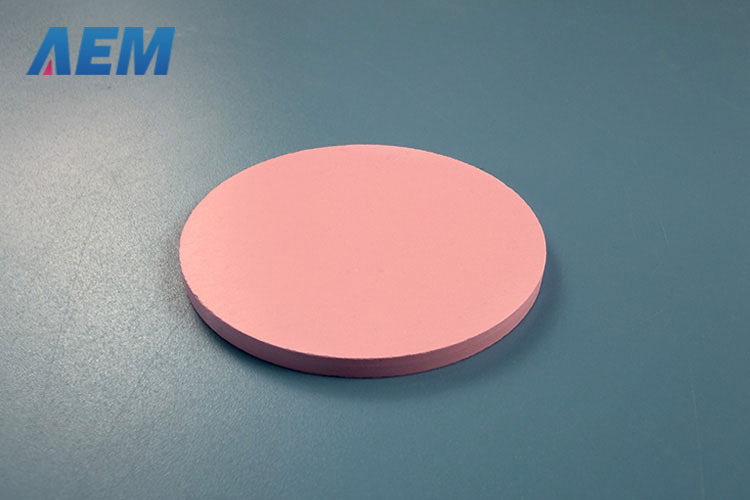

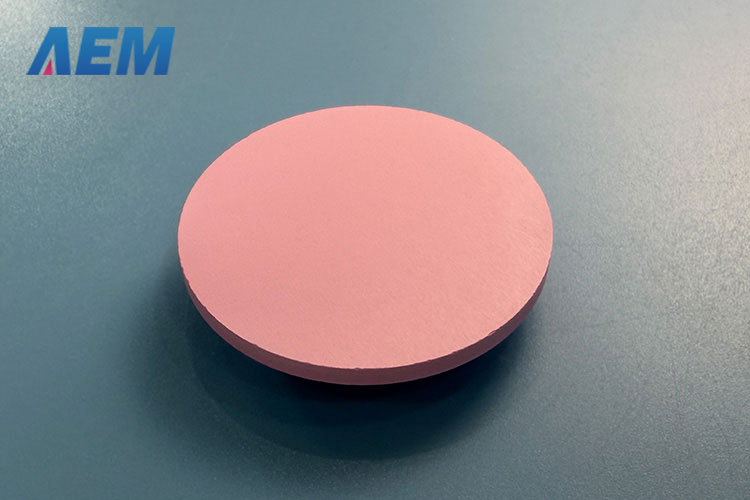

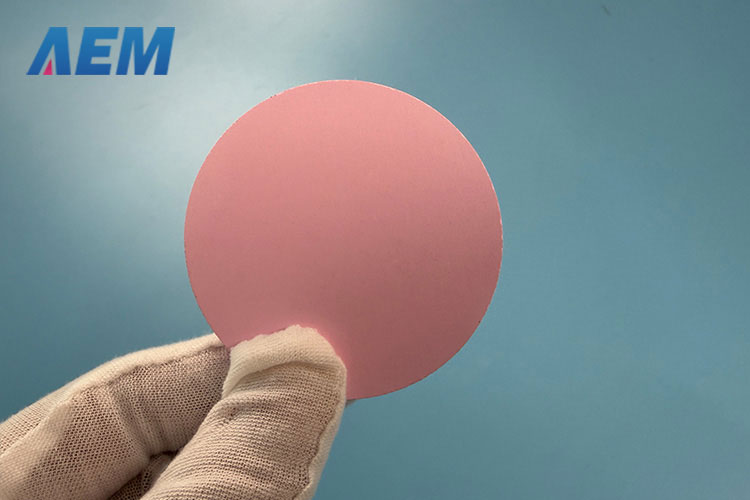

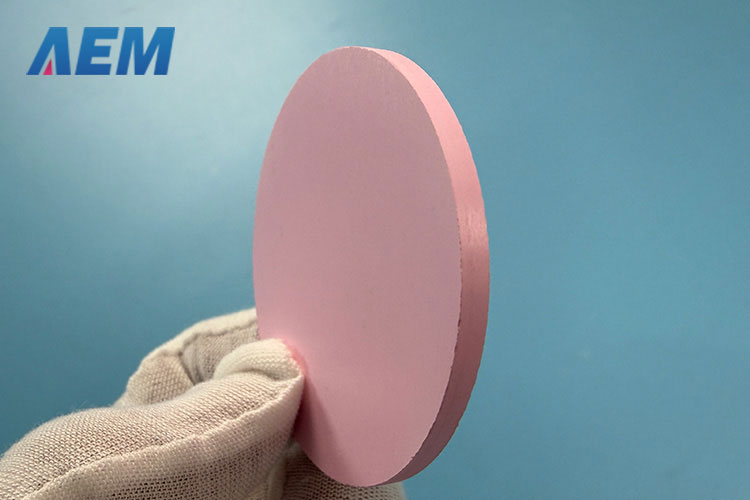

Erbium Oxide Sputtering Targets (Er2O3)
| Material Type | Erbium Oxide |
| Symbol | Er2O3 |
| Color/Appearance | Pink, Solid |
| Melting Point (°C) | 2,350 |
| Theoretical Density (g/cc) | 8.64 |
| Z Ratio | **1.00 |
| Sputter | RF, RF-R |
| Type of Bond | Indium, Elastomer |
| Comments | Loses oxygen. |
Erbium Oxide Sputtering Targets
Erbium(III) oxide is synthesized from the lanthanide metal erbium. Carl Gustaf Mosander partially isolated it in 1843 and first obtained in pure form in 1905 by Georges Urbain and Charles James. It has a pink color with a cubic crystal structure. Under certain conditions, erbium oxide can also have a hexagonal form. Erbium oxide is toxic when inhaled, taken orally, or injected into the bloodstream in massive amounts. The effect of erbium oxides in low concentrations on humans over long periods has not been determined.
Erbium Oxide Sputtering Targets Information
Erbium Oxide Sputtering Targets
Purity: 99.9%;
Circular: Diameter <= 14 inch, Thickness >= 1 mm;
Block: Length <= 32 inch, Width <= 12 inch, Thickness >= 1 mm.
Bonding is recommended for these materials. Many materials have characteristics that are not amenable to sputtering, such as brittleness and low thermal conductivity. This material may require a special ramp up and ramp down procedures. This process may not be necessary for other materials. Targets that have low thermal conductivity are susceptible to thermal shock.
Related Products of Erbium Oxide Sputtering Targets
|
N/A
|
Ceramic Sputtering Targets Erbium Oxide Sputtering Target |
|
|
Evaporation Materials |
Crucibles N/A |
Metal Powders N/A |
Click to download datasheet about Erbium Oxide Sputtering Targets (Er2O3)
Unable to find the required data sheet? Click here to send an email and get it.
Click here to get answers to Frequently Asked Questions (FAQ).
