Home > Sputtering Targets > Ceramic Oxide Sputtering Targets > Lanthanum Strontium Cobalt Oxide Sputtering Targets (La0.5Sr0.5CoO3)

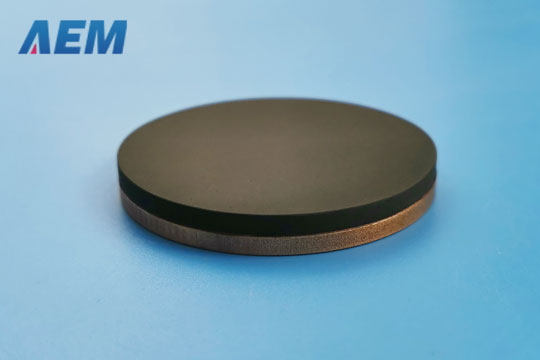

Lanthanum Strontium Cobalt Oxide Sputtering Targets (La0.5Sr0.5CoO3)

Material Type	Lanthanum Strontium Cobalt Oxide
Symbol	La_0.5Sr_0.5CoO₃
Color/Appearance	Various colors, Solid
Melting Point (°C)	N/A

Relative Density (g/cc)	>90%
Z Ratio	N/A
Sputter	RF, RF-R, DC
Max Power Density* (Watts/Square Inch)	N/A
Type of Bond	Indium, Elastomer
Comments

Lanthanum Strontium Cobalt Oxide Sputtering Targets

Lanthanum Strontium Cobalt Oxide (La1-xSrxCoO3, La0.5Sr0.5CoO3) has many applications such as catalyst, superconducting, solid oxide fuel cell cathode, supercapacitor, ferroelectric storage.

Lanthanum Strontium Cobalt Oxide Sputtering Targets Information

Lanthanum Strontium Cobalt Oxide Sputtering Targets
Purity: 99.9%;
Circular: Diameter <= 14 inch, Thickness <= 15 mm;
Block: Length <= 120 +/-0.1 mm, Width <= 120 +/-0.1 mm,Thickness <= 15 mm.
Bonding is recommended for these materials. Many materials have characteristics that are not amenable to sputtering, such as brittleness and low thermal conductivity. This material may require a special ramp up and ramp down procedures. This process may not be necessary for other materials. Targets that have low thermal conductivity are susceptible to thermal shock.

More Information on Lanthanum Strontium Cobalt Oxide Sputtering Targets

Applications

• Catalyst
• Superconducting, Solid oxide fuel cell cathode

• Super capacitor
• Ferroelectric storage

Features

• High purity & density
• Custom sizes available
• Single phase

Manufacturing Process

• In-house powder synthesis, High purity metal oxide precursor materials, High energy mixing, Particle sizing processes

• Multiple step densification, Proprietary processes employed for pressing and sintering

• Cleaning and final packaging, Cleaned for use in vacuum, Protection from environmental contaminants, Protection during shipment

Options

• 99.9% minimum purity

• Smaller sizes also available for R&D applications

• Sputtering target bonding service
