Lithium Manganate Sputtering Targets (LiMn2O4)

Material Type	Lithium Manganate
Symbol	LiMn₂O₄
Color/Appearance	Dark grey, Solid
Melting Point (°C)	>400

Theoretical Density (g/cc)	N/A
Water Solubility	Insoluble
Sputter	RF, RF-R, DC
Max Power Density* (Watts/Square Inch)	N/A
Type of Bond	Indium, Elastomer
Comments

Lithium Manganate Sputtering Targets

Lithium Manganate (LiMn2O4), also called lithium manganese oxide, is a dark to black powder and a high-performance lithium ion battery component. Lithium manganate usually is instantly available in most volumes. High purity, submicron, and nanopowder forms may be considered. Spinel lithium manganese oxide, LiMn2O4, and its derivatives are prepared by the sol-gel method. Different transition metal cations of Chromium, Iron, Cobalt, Nickel, Copper, and Zinc (0.05 and 0.15 M) are doped in place of manganese in the LiMn2O4.

Lithium Manganate Sputtering Targets Information

Lithium Manganate Sputtering Targets
Purity: 99.9%;
Circular: Diameter <= 14 inch, Thickness <= 15 mm;
Block: Length <= 120 +/-0.1 mm, Width <= 120 +/-0.1 mm,Thickness <= 15 mm.

More Information on Lithium Manganate Sputtering Targets

Applications • Positive Electrode Materials for Li-Ion and Li-Batteries	Features • High purity & density • Density: >=4.01 g/cm3 • Phase pure • Custom sizes available
Manufacturing Process • In-house powder synthesis, High purity metal oxide precursor materials, High energy mixing, Particle sizing processes • Multiple step densification, Proprietary processes employed for pressing and sintering • Cleaning and final packaging, Cleaned for use in vacuum, Protection from environmental contaminants, Protection during shipment	Options • 99.9% minimum purity • Smaller sizes also available for R&D applications • Sputtering target bonding service

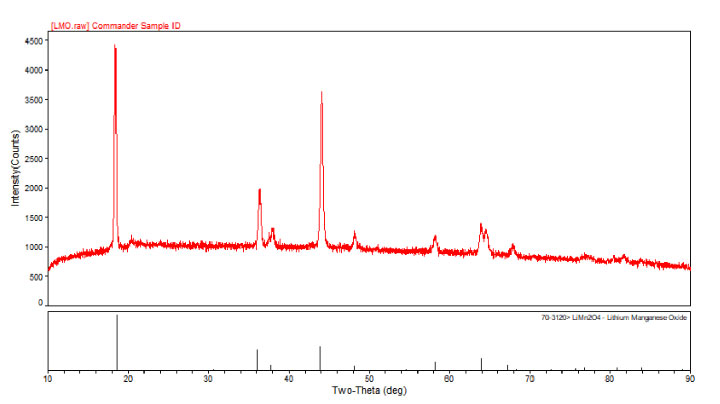

XRD Chart of Lithium Manganate Sputtering Targets
