Ytterbium Oxide Sputtering Targets (Yb2O3)
| Material Type | Ytterbium Oxide |
| Symbol | Yb2O3 |
| Color/Appearance | White, Crystalline Solid |
| Melting Point (°C) | 2,346 |
| Theoretical Density (g/cc) | 9.17 |
| Z Ratio | **1.00 |
| Sputter | RF, RF-R |
| Type of Bond | Indium, Elastomer |
| Comments | Loses oxygen. |
Ytterbium Oxide Sputtering Targets
Ytterbium(III) oxide is the chemical compound with the formula Yb2O3. It is one of the more commonly encountered compounds of ytterbium. It has the "rare-earth C-type sesquioxide" structure related to the fluorite structure with one-quarter of the anions removed, leading to ytterbium atoms in two different six-coordinate (non-octahedral) environments.
Ytterbium Oxide Sputtering Targets Information
Ytterbium Oxide Sputtering Targets
Purity: 99.9%;
Circular: Diameter <= 14 inch, Thickness >= 1mm;
Block: Length <= 32 inch, Width <= 12 inch, Thickness >= 1mm.
Bonding is recommended for these materials. Many materials have characteristics that are not amenable to sputtering, such as brittleness and low thermal conductivity. This material may require a special ramp up and ramp down procedures. This process may not be necessary for other materials. Targets that have low thermal conductivity are susceptible to thermal shock.
More Information on Ytterbium Oxide Sputtering Targets
Applications• Ferroelectric• Gate Dielectric • For CMOS |
Features• High purity• Custom sizes available |

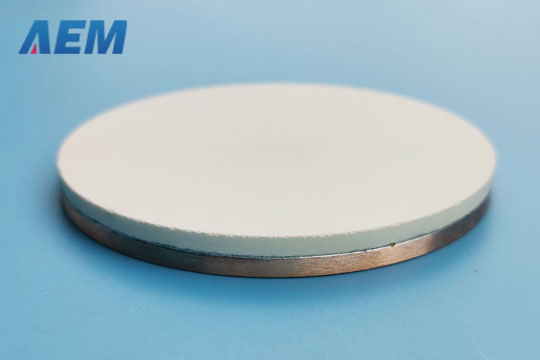

Manufacturing Process• Manufacturing - Cold pressed - Sintered, Elastomer bonded to backing plate
• Cleaning and final packaging, Cleaned for use in vacuum, |
Options
• 99.9% minimum purity
• Smaller sizes also available for R&D applications
• Sputtering target bonding service
|
