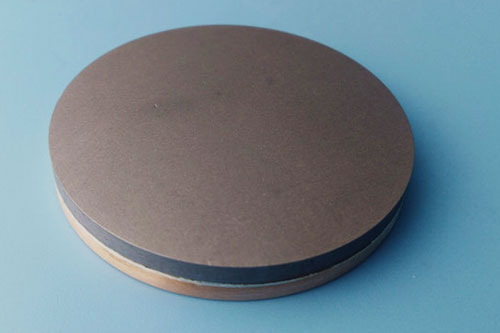

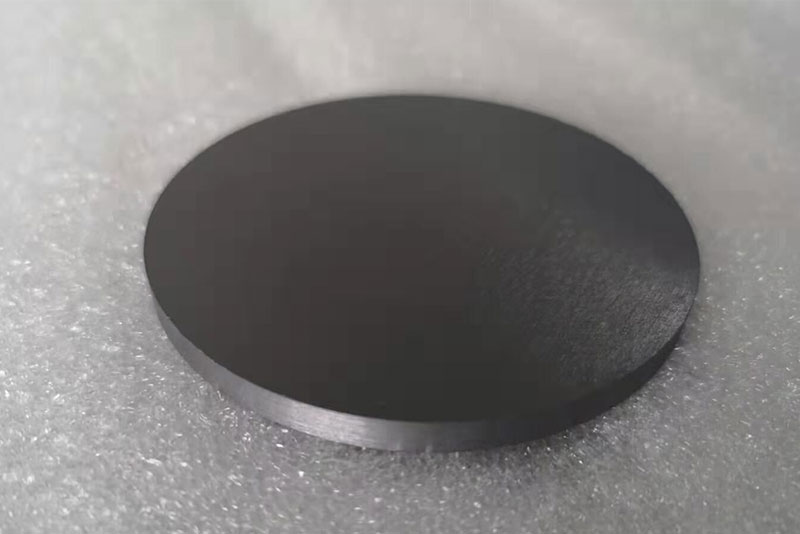

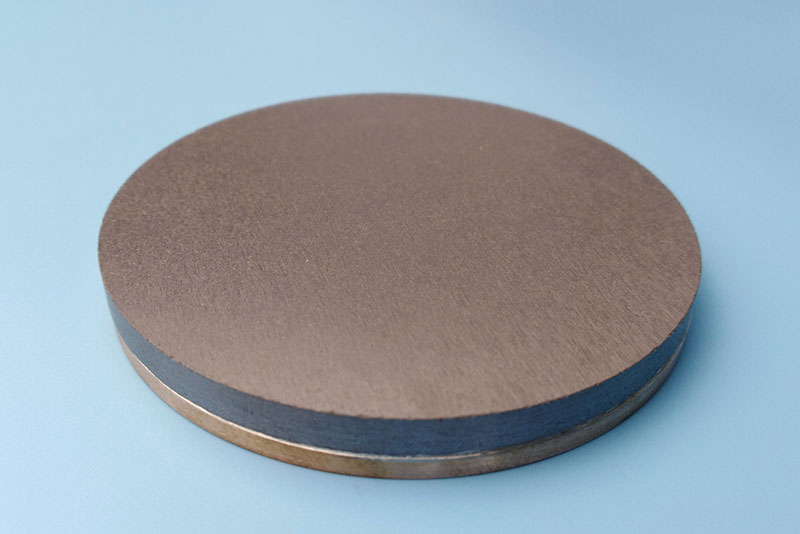

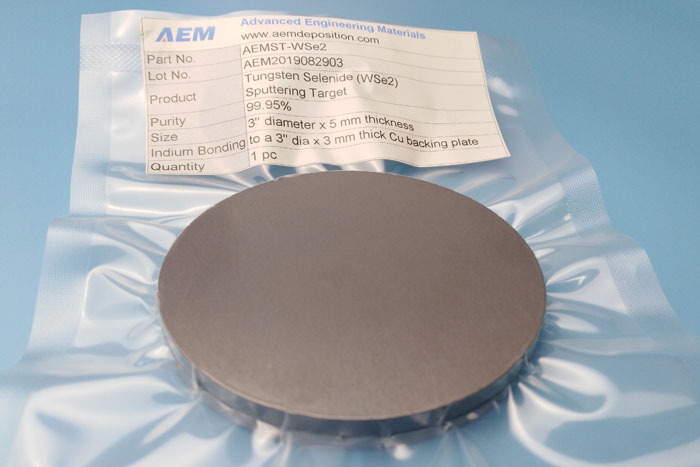

Tungsten Selenide Sputtering Targets (WSe2)

Material Type	Tungsten Selenide
Symbol	WSe₂
Color/Appearance	Blue grey, Crystalline Solid
Melting Point (°C)	N/A

Theoretical Density (g/cc)	9.32
Water Solubility	Insoluble
Sputter	RF, RF-R, DC
Type of Bond	Indium, Elastomer
Comments

Tungsten Selenide Sputtering Targets

Tungsten diselenide is an inorganic compound with the formula WSe2. The compound adopts a hexagonal crystalline structure similar to molybdenum disulfide. Every tungsten atom is covalently bonded to six selenium ligands in a trigonal prismatic coordination sphere, while each selenium is bonded to three tungsten atoms in a pyramidal geometry. The tungsten–selenium bond has a length of 0.2526 nm, and the distance between selenium atoms is 0.334 nm. Layers stack together via van der Waals interactions. WSe2 is a very stable semiconductor in the group-VI transition metal dichalcogenides.

Tungsten Selenide Sputtering Targets Information

Tungsten Selenide Sputtering Targets
Purity: 99.9%;
Circular: Diameter <= 14 inch, Thickness >= 1mm;
Block: Length <= 1.4 m (by several pieces construction) Width <= 12 inch, Thickness >= 1mm.
Tungsten Selenide (WSe2) is commonly used in electronic industries and produced by hot press technique.

More Information on Tungsten Selenide Sputtering Targets

Applications

• Chemical Vapor Deposition (CVD)
• Physical Vapor Deposition (PVD)
• Semiconductor

• Optical

Features

• High purity
• Custom sizes available

Manufacturing Process

• Manufacturing - hot pressed - Sintered, Elastomer bonded to backing plate

• Cleaning and final packaging, Cleaned for use in vacuum,
Protection from environmental contaminants
Protection during shipment

Options

• 99.9% minimum purity

• Smaller sizes also available for R&D applications

• Sputtering target bonding service
