Sputtering Targets
| Material Type | Indium Tin Oxide |
| Symbol | In2O3/SnO2 90/10 wt %, ITO |
| Melting Point (°C) | 1,800 |
| Sputter | RF, DC |
|
Max Power Density* (Watts/Square Inch) |
20 |
| Type of Bond | Indium, Elastomer |
We are the manufacturer of ITO sputtering targets, which produces and provides high -quality ITO sputtering targets.
Note：Target Bonding Service is recommended for these ITO targets. Many materials have characteristics that are not amenable to sputtering, such as brittleness and low thermal conductivity. This material may require a special ramp up and ramp down procedures. This process may not be necessary for other materials. Targets that have low thermal conductivity are susceptible to thermal shock.

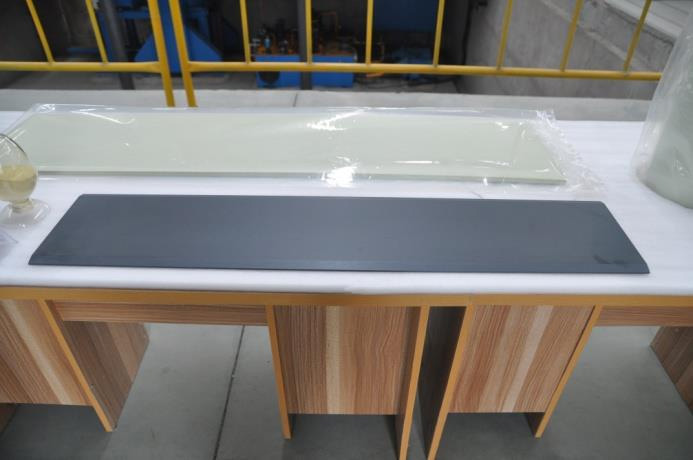

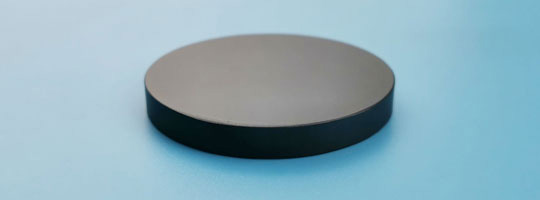

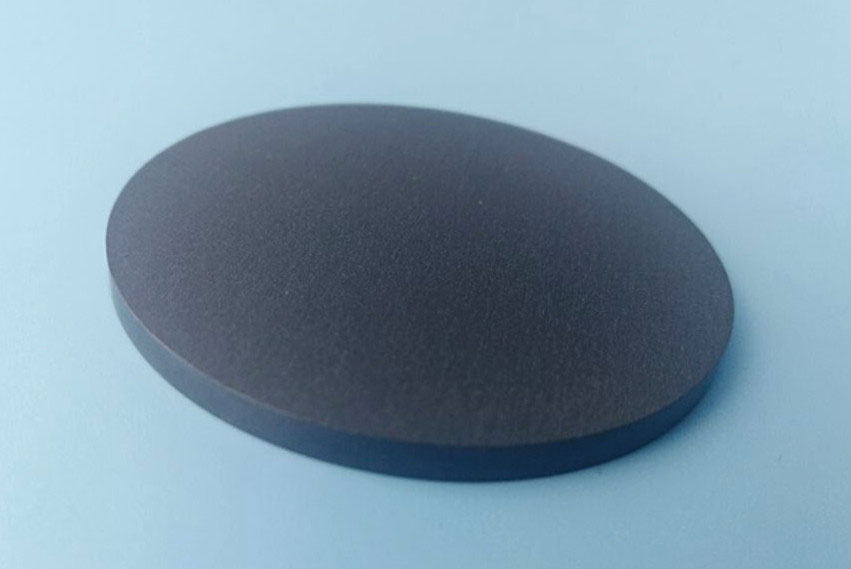

Indium Tin Oxide Sputtering Targets
Purity: 99.9%;99.99%;99.999%

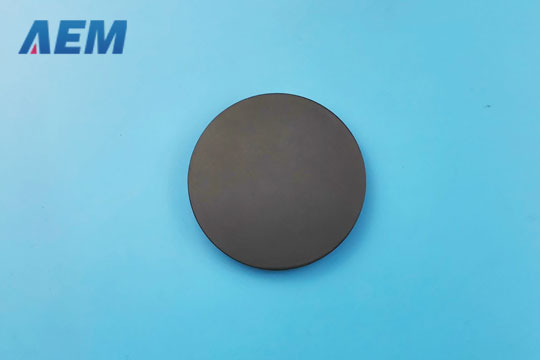

Circular: Diameter <= 14 inch, Thickness >= 1 mm;

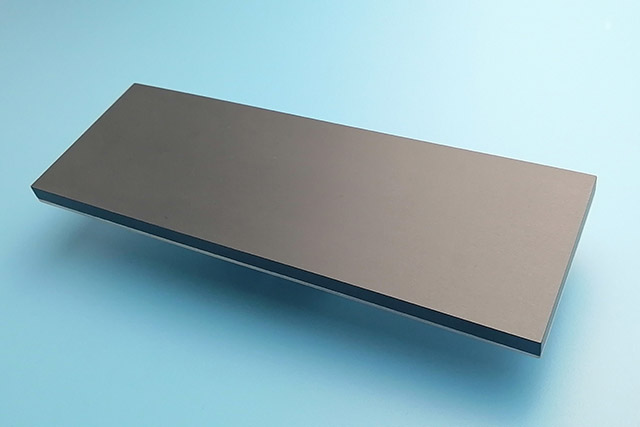

Block: Length <= 32 inch, Width <= 12 inch, Thickness >= 1 mm;

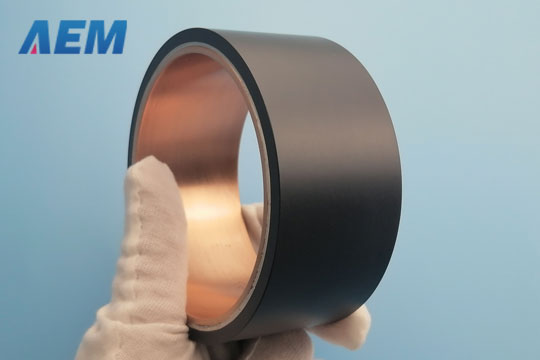

Types: Planar sputtering targets, Rotary sputtering targets.
We can also provide ITO sputtering targets of other shapes or sizes according to your needs. Please contact us if there is a need.
Cutting-edge Quality: Utilizing state-of-the-art manufacturing technologies, we are committed to delivering high-quality ITO sputtering targets. Our rigorous testing processes ensure that our targets not only meet but exceed industry standards.
Customer Satisfaction and Trust: With years of dedicated effort, we have earned the trust of countless customers, including being the chosen supplier for Stanford University. Our professional team is dedicated to providing top-notch services, building long-term relationships based on satisfaction and trust.
Global Impact and Accessibility: Serving clients globally, our efficient distribution network ensures prompt deliveries. Wherever you are, accessing our high-quality ITO sputtering targets is seamless. We provide comprehensive support and guidance throughout the purchasing process, ensuring a seamless experience for our global clientele.
Expert Technical Team: With over a decade of industry experience, our technical team can provide tailored advice based on your specific needs.

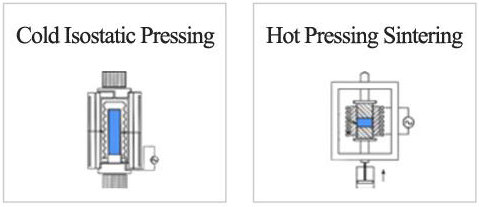

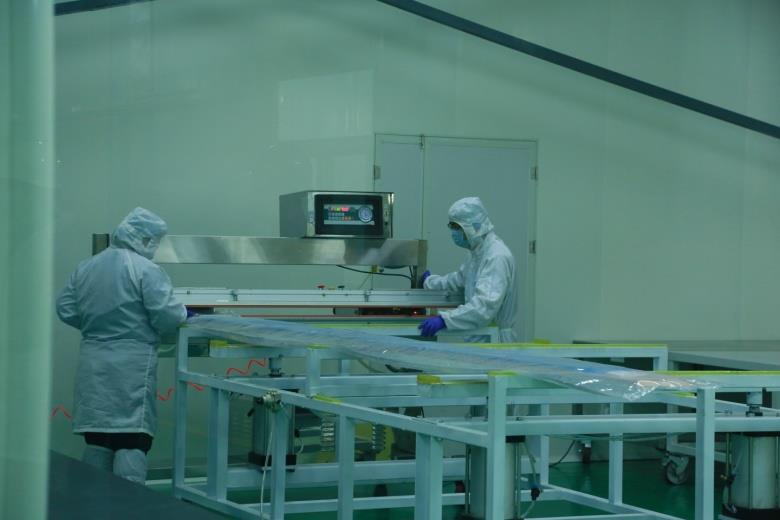

Here are the general steps in the manufacturing of ITO (Indium Tin Oxide) sputtering targets:

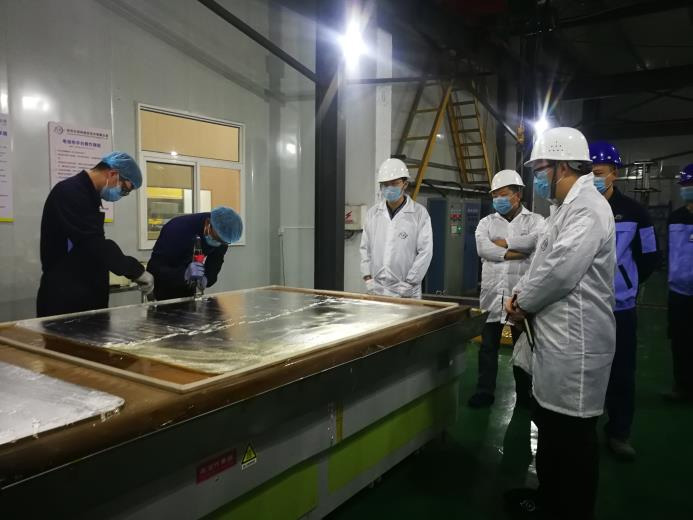

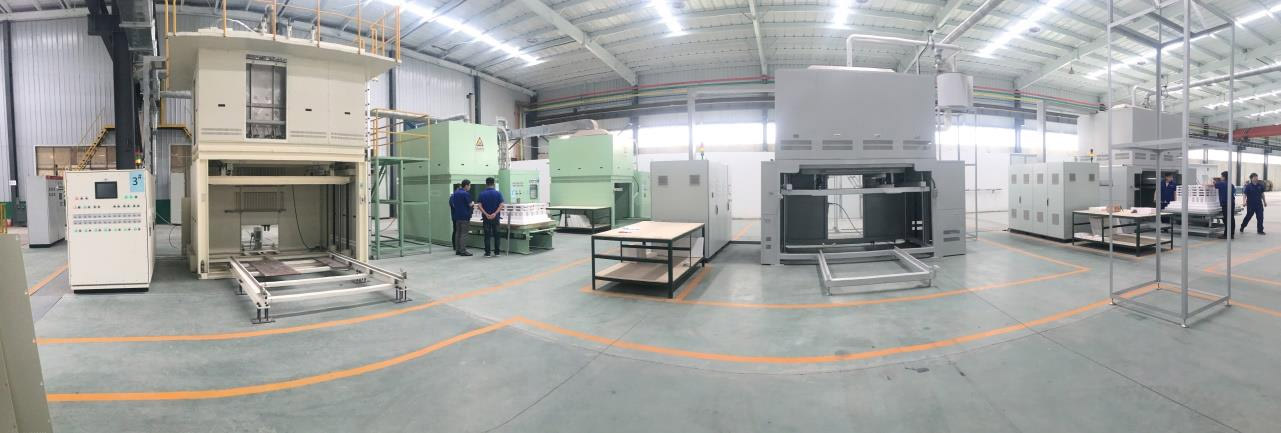

The entire manufacturing process requires advanced equipment and specialized expertise. Customization of the manufacturing process is common based on market demands and customer requirements, ensuring adherence to high-quality standards to meet various application needs.
ITO sputtering targets will undergo inspection by the quality and technical supervision department to ensure that the product quality complies with the specified standards or the terms outlined in the purchase order (contract).
| Items | Test Methods | Remark |
|---|---|---|
| Ingredient | Chemical Titration | |
| Purity | ICP | |
| Relative Density | Archimedes Drainage Method | Theoretical Density 7.15g/cm3 |

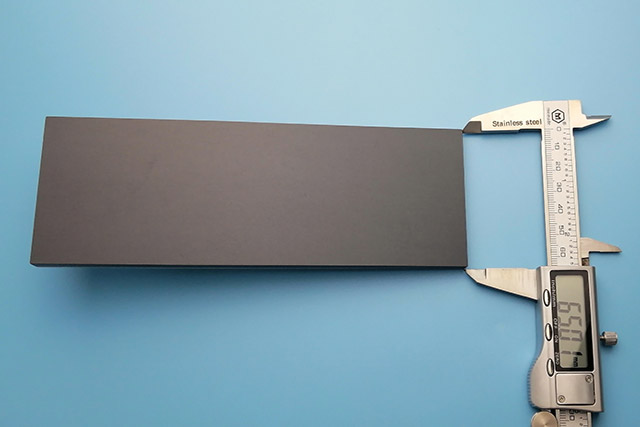

| Size | Vernier Caliper | |
| Weight | High Precision Balance | |
| Fit Position | Caliper | |
| Fit Rate | UltrasonicTesting | |
| Bend | Feeler Gauge | |
| Fitting Gap | Vernier Caliper |
ICP analyzer

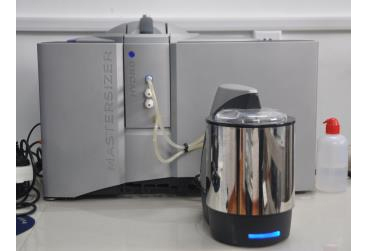

Laser particle size analyzer
Ultrasonic flaw detector

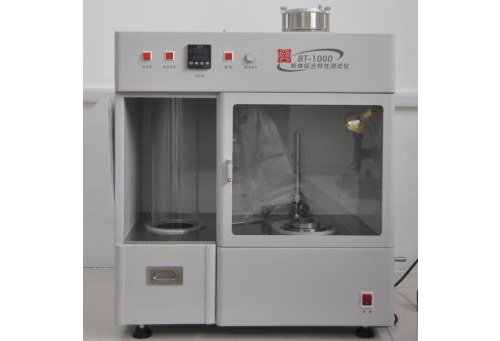

Powder tester

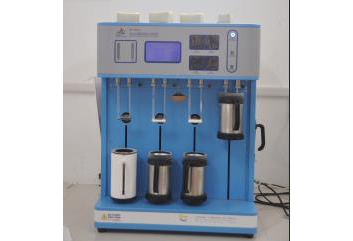

Nitrogen adsorption instrument
| Pure Metal Sputtering Targets | |
| Alloy Sputtering Targets | |
| Ceramic Sputtering Targets | |
| Evaporation Materials | |
| Crucibles |
|
| Metal Powders |

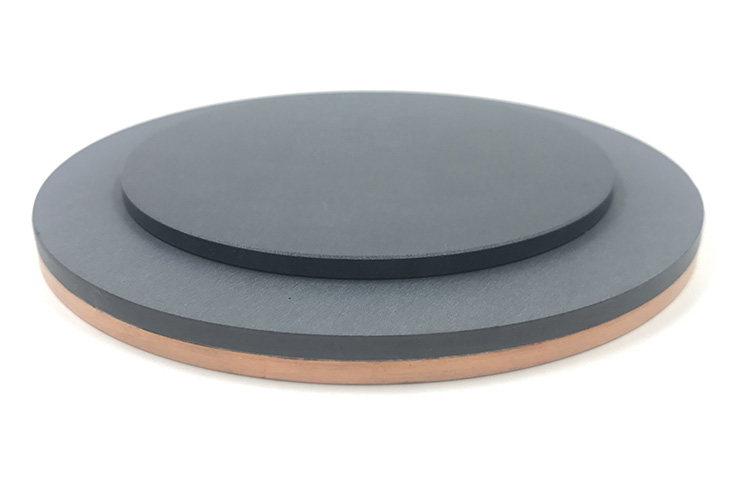

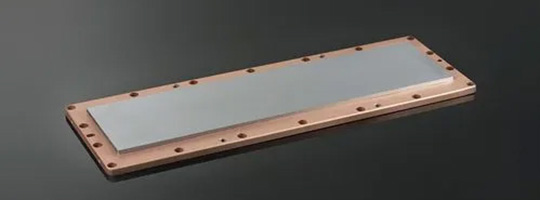

We offer target bonding on backing plates using indium-, elastomer-, aluminum- and silver-based metallic alloy to improve thermal conductivity under high power inputs. Durable target bonding requires a variety of pre and post bond functions to assure adhesion.

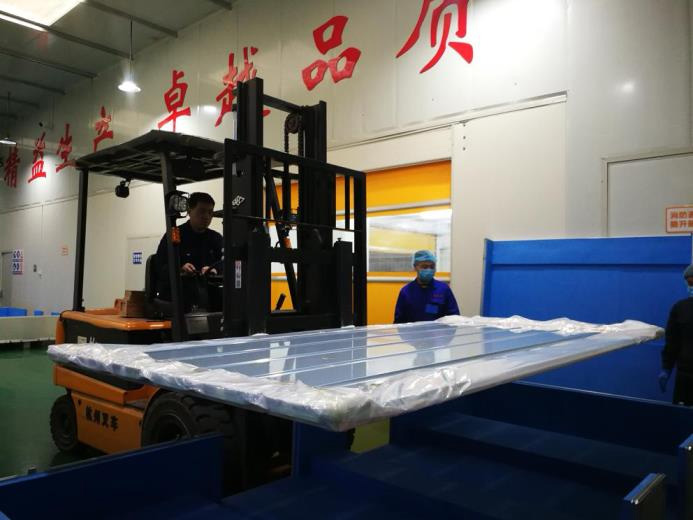

The product is vacuum sealed in an anti-static plastic bag and placed in a collision-proof packaging box.
Each product is attached with a label, indicating: product name, purity, specifications, net weight, batch number, production date, supplier name, manufacturer address
During the transportation of the product, prevent bumps and scratches, prevent the product from being damaged and contaminated, and ensure that the target material is intact during transportation.
The product will be stored in a clean and dry environment.
ITO (Indium Tin Oxide) sputtering targets play a crucial role in diverse industries, spanning electronics, optics, and solar technology. Whether you are sourcing ITO targets for specialized projects or considering their distribution in your local market, this comprehensive guide equips you with essential insights to make well-informed decisions.
ITO targets are a type of ceramic target within the sputtering target category, composed of a ratio of 90% indium oxide to 10% tin oxide. This mixture undergoes high-temperature sintering at 1600 degrees, resulting in a dark gray ceramic material.
It is applied in industries such as display panels, thin-film solar cells, and specialty glass. The most primary application of ITO targets is in the production of photovoltaic HJT solar cells. HJT solar cells require a transparent conductive oxide (TCO) film coated on both sides, serving as an anti-reflective layer and a conductive layer for lateral charge carrier transport to the cell. ITO is a commonly used target for preparing TCO films.
Due to its outstanding properties, including a high visible light transmittance of up to 90%, low electrical resistance, good wear resistance, and chemical stability, ITO excels in TCO film performance.
ITO (Indium Tin Oxide) sputtering targets stand as a pivotal material widely employed in thin-film deposition technology, deriving their distinctive characteristics from unique physical and chemical properties. Here are some salient features of ITO sputtering targets:
Complex Chemical Composition: ITO sputtering targets typically consist of precisely proportioned indium oxide and tin oxide, where the ratio plays a critical role in determining the final film's performance.
High-Temperature Sintering: The preparation of ITO targets often involves a high-temperature sintering process, reaching temperatures as high as 1600 degrees. This meticulous process yields ceramic materials showcasing outstanding mechanical strength and stability.
Exceptional Optical Performance: ITO sputtering targets exhibit outstanding optical transparency, particularly in the visible light spectrum, with a transmittance exceeding 90%. This makes them an ideal choice for producing transparent conductive layers.
Outstanding Electrical Conductivity: ITO demonstrates superior electrical conductivity, characterized by low electrical resistance, making it suitable for conductive layers in various electronic devices.
Mechanical Strength and Wear Resistance: ITO ceramic materials, crafted through high-temperature sintering, boast excellent mechanical strength and wear resistance, making them adaptable to diverse and complex processing conditions.
Chemical Stability: ITO maintains a high level of chemical stability in typical environmental conditions, resistant to oxidation or corrosion, ensuring enduring performance in a variety of applications.
Adjustable Electrical Properties: The electrical properties of ITO can be finely tuned by adjusting the ratio of indium oxide to tin oxide, catering to the specific requirements of different application scenarios.
Wide Range of Applications: ITO sputtering targets find primary applications in photovoltaics, display devices, thin-film solar cells, and other fields, playing a crucial role in advancing electronic materials technology.
In summary, ITO sputtering targets, with their exceptional performance and versatile applications, stand out as cutting-edge materials in the realm of electronic materials, garnering significant attention in both research and industrial production.
ITO (Indium Tin Oxide) sputtering targets play a crucial role in various advanced technological domains, with widespread and diverse applications. Here are some key application areas of ITO sputtering targets:
Display Technology: ITO is extensively used in display technologies such as Liquid Crystal Displays (LCDs) and Organic Light Emitting Diodes (OLEDs) as a transparent conductive layer, ensuring high-quality display performance.
Touchscreen Technology: In touchscreen technology, ITO serves as a conductive sensor layer, enabling users to interact with devices through touch. This application includes smartphones, tablets, and other devices.
Photovoltaic Technology: ITO finds wide applications in the field of photovoltaics, especially as a transparent conductive layer in thin-film solar cells. It contributes to improving the conversion efficiency of photovoltaic cells.
Electronic Devices: As an excellent conductive material, ITO is utilized as a conductive layer in various electronic devices, including transistors, photodiodes, and more.
Thermal Deposition Techniques: ITO sputtering targets also play a role in thermal deposition techniques, used to create conductive films on various substrates with uniformity and high transparency.
Optical Coatings: Leveraging its outstanding optical properties, ITO is employed in the preparation of diverse optical coatings, such as anti-reflection coatings and transparent conductive coatings.
Thin-Film Sensors: ITO is used in the fabrication of thin-film sensors, including gas sensors and optical sensors, harnessing the conductive properties of thin films for sensor functionality.
Medical Devices: In medical devices, ITO can be employed to produce transparent conductive layers, such as transparent electrodes, used in medical imaging and biosensor applications.
In summary, ITO sputtering targets play an irreplaceable role in modern technology, contributing to the development of various electronic and optical applications, thanks to their multifaceted outstanding performance.
When it comes to procuring ITO (Indium Tin Oxide) sputtering targets, thoughtful consideration is key to ensuring optimal performance in your thin-film deposition processes. Here are essential factors to weigh:
Composition: ITO is composed of varying ratios of indium oxide and tin oxide. The specific composition influences key properties, including electrical conductivity and optical transparency. Choose the composition that aligns with your application's requirements.
Purity Level: The purity of the ITO sputtering target is crucial, especially for applications in semiconductor and optical fields. Higher purity levels contribute to improved film quality. Verify that the chosen target meets the desired purity standards.
Dimensions: Accurate dimensions, including diameter and thickness, are paramount for successful sputtering processes. Confirm that the ITO target dimensions align precisely with your equipment specifications to ensure uniform and effective coating.
Certifications: For applications such as display technologies or photovoltaics, certifications validate the quality and consistency of the ITO sputtering target. Ensure that the chosen target adheres to industry standards relevant to your application.
Supplier Reputation: Opt for a reputable supplier with a proven track record in delivering high-quality ITO sputtering targets. A reliable supplier not only ensures product quality but can also provide valuable insights into optimizing your sputtering processes.
Price vs. Quality: While cost is a consideration, prioritize quality to avoid compromising the efficiency and reliability of your sputtering processes. Investing in a superior-grade ITO target may result in long-term benefits, including enhanced film performance and durability.
Application Environment: Consider the specific conditions under which the ITO sputtering target will operate. Factors such as deposition environment, temperature, and exposure to reactive gases can influence the choice of ITO composition and target design.
By carefully evaluating these considerations, you'll be equipped to make an informed decision that aligns with the unique requirements of your thin-film deposition applications, whether in the realm of electronics, optics, or other cutting-edge technologies.
Choosing the right supplier for ITO (Indium Tin Oxide) sputtering targets is a crucial decision that significantly impacts the success of your thin-film deposition processes. To make an informed choice, consider the following key factors:
Experience: Opt for suppliers with a proven track record and extensive experience in providing ITO sputtering targets. A supplier with a long history in the industry is more likely to deliver high-quality products and services.
Certifications: Look for suppliers that adhere to recognized quality standards, such as ISO or ASTM certifications. These certifications ensure that the ITO sputtering targets meet industry benchmarks for quality and performance.
Product Variety: Choose suppliers offering a diverse range of ITO compositions, finishes, and sizes. This variety allows you to select the specific targets that best suit your thin-film deposition requirements.
Transparent Pricing: Ensure that the supplier provides transparent and clear pricing with no hidden charges. A straightforward pricing structure helps you budget effectively and avoids unexpected costs.
Customer Feedback: Check customer reviews and testimonials to gauge the quality of both the ITO sputtering targets and the supplier's services. Positive feedback from previous customers indicates a supplier's reliability.
Supply Chain: Evaluate the supplier's relationship with raw material providers to ensure a robust supply chain. A dependable supply chain contributes to the overall quality and value of the ITO sputtering targets.
Customer Service: Assess the responsiveness and professionalism of the supplier's customer service team. Quick and informed responses to your inquiries demonstrate a commitment to customer satisfaction.
Delivery Times: On-time deliveries are crucial for maintaining project timelines. Inquire about the supplier's delivery capabilities and track record to ensure they can meet your project's schedule.
Customization: Confirm whether the supplier can customize ITO sputtering targets to your specific specifications. Customization options are essential for projects with unique thin-film deposition requirements.
After-Sales Support: Review the supplier's post-purchase policies, including warranties and return procedures. A supplier offering reliable after-sales support demonstrates confidence in the quality of their ITO sputtering targets.
By carefully considering these factors, you can confidently select an ITO sputtering target supplier that aligns with your thin-film deposition project's needs, ensuring a successful and efficient procurement process.
AEM is a distinguished manufacturer and reliable source of high quality ITO sputtering targets. Our comprehensive services ensure precision at every stage from initial selection to timely delivery, making AEM the first choice for quality ITO ssputtering targets requirements. Additionally, in most cases we have the flexibility to create custom samples based on your exact specifications. This ensures you get the exact ITO sputtering target you need for your specific project. Trust AEM to meet your ITO sputtering target needs with excellence and customization.
The basic composition of ITO target is Indium Oxide and Tin Oxide, which is usually prepared by mixing under a certain ratio, the common ratio is 90% Indium Oxide and 10% Tin Oxide.If there is a need for other ratios, we can also make them according to requirements.
ITO target has excellent transparency and conductivity and is suitable for optical devices and transparent conductive film preparation. It has good transparency in the visible spectral range and has a tunable conductivity.
We offer ITO sputtering targets in various sizes and shapes, and we can customize specific sizes and shapes according to customers' requirements, such as round, square, rectangle and so on.
ITO sputtering targets are mainly used in the preparation of various transparent conductive thin film devices such as flat panel displays, solar cells, photovoltaic devices, touch panels and conductive glass.
Delivery for small targets is 4-5 weeks. For large targets, the lead time varies based on quantity and material, ranging from 1 to 4 months.
We have a strict quality control process to ensure that our products meet the standards. Meanwhile, we provide perfect after-sales service to ensure customer satisfaction.
