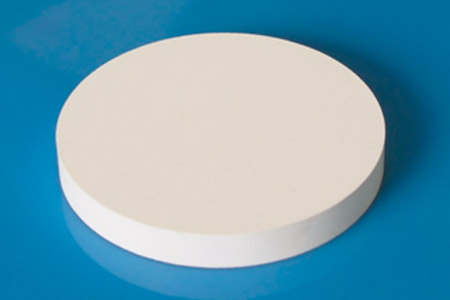

Zirconia Stabilized with Yttria Sputtering Target (YSZ)
| Material Type | Zirconia stabilized with Yttria |
| Symbol | Zr(1-x)YxO2, YSZ |
| Color/Appearance | White/Off-white, Solid |
| Melting Point (°C) | ~2,500 |
| Relative Density (g/cc) | 5.89 |
| Water Solubility | Insoluble |
| Sputter | RF, RF-R, DC |
| Type of Bond | Indium, Elastomer |
| Comments | Various composition available |
Zirconia Stabilized with Yttria Sputtering Target
Yttria-stabilized zirconia (YSZ) is a ceramic in which the crystal structure of zirconium dioxide is made stable at room temperature by an addition of yttrium oxide. These oxides are commonly called "zirconia" (ZrO2) and "yttria" (Y2O3). Yttria stabilized zirconia nanopowder is white in color and molecular weight are 349.03.
Zirconia Stabilized with Yttria Sputtering Target Information
Zirconia stabilized with Yttria Sputtering Targets
Purity: 99.9%;
Circular: Diameter <= 14 inch, Thickness >= 1mm;
Block: Length <= 32 inch, Width <= 12 inch, Thickness >= 1mm.
Other Information of Zirconia stabilized with Yttria Sputtering Target
Applications• Ferroelectric• Gate Dielectric • For CMOS |
Features• High purity• Custom sizes available |
Manufacturing Process• Manufacturing - Cold pressed - Sintered, Elastomer bonded to backing plate
• Cleaning and final packaging, Cleaned for use in vacuum, |
Options• 99.9% minimum purity• Up to 12'' diameter targets available • Planar tiles up to 8'' X 5'' for larger target configurations |
