Hafnium Oxide Pellet Evaporation Material (HfO2)
| Material Type | Hafnium Oxide |
| Symbol | HfO2 |
| Color/Appearance | White, Crystalline Solid |
| Melting Point (°C) | 2,758 |
| Theoretical Density (g/cc) | 9.68 |
| Z Ratio | **1.00 |
| E-Beam | Fair |
| E-Beam Crucible Liner Material | Direct in Hearth |
| Temp. (°C) for Given Vap. Press. (Torr) | 10-4: ~2,500 |
| Export Control (ECCN) | 1C231 |
| Comments | Film HfO. |

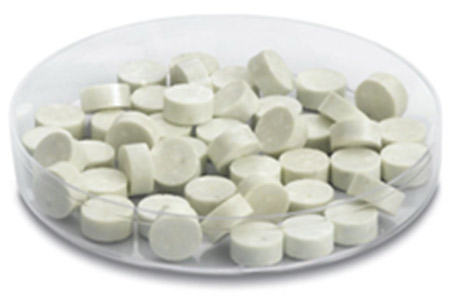

Hafnium Oxide Pellet
Hafnium oxide is an inorganic compound with a chemical formula of HfO2. It has a density of 9.68 g/cc, a melting point of 2,758°C, and a 10-4 Torr vapor pressure at 2,500 °C. It is off-white in color and generally considered to be one of the more stable hafnium compounds. Hafnium oxide has been utilized significantly in recent years as an addition to computer chips to improve the speed and efficiency of processors. It is also evaporated under vacuum for optical coatings and semiconductor fabrication.
Hafnium Oxide Pellet Information
AEM Deposition provides Hafnium Oxide pellets, Hafnium Oxide pieces, Hafnium Oxide powder for sale, and the purity is 99.9%.
